1x4 Bare Fiber PLC Splitter, Steel Tube, 250μm fiber, No connector

ST-PLC-104-250
Low insertion Loss and high stability, 250μm bare fiber,Telecordia GR-1221/1209 compliant,apply to FTTX Network, PON, CWDM& DWDM system.
Price:
    Please select the information you wantX
Quantity:
-
+
(500 Available )
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews


Rollball 1x4 Bare fiber PLC Splitter, Steel Tube, 250μm



Description


  1. Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. Bare fiber splitter is a kind of ODN product suitable for PON networks that can be installed in the pigtail cassette, test instrument and WDM system, which minimizes the space occupation. It is relatively fragile on fiber protection and need a complete protection design on carrying box body and device.
  2. Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

Features
  1. 1x4 Bare PLC splitter, unconnectorized
  2. 250μm ITU G.657A1 for fiber input/output
  3. Low insertion loss ≤ 10.5dB
  4. Low polarization dependent loss (PDL) ≤ 0.3dB
  5. Operating bandwidth: 1260 - 1650nm
  6. Compact design, suitable for installation in optical equipments
  7. High reliability and stability, Telecordia GR-1221/1209 compliant
  8. Operating Temperature: -40 ~85°C, support industry standard applications
  9. RoHS compliant

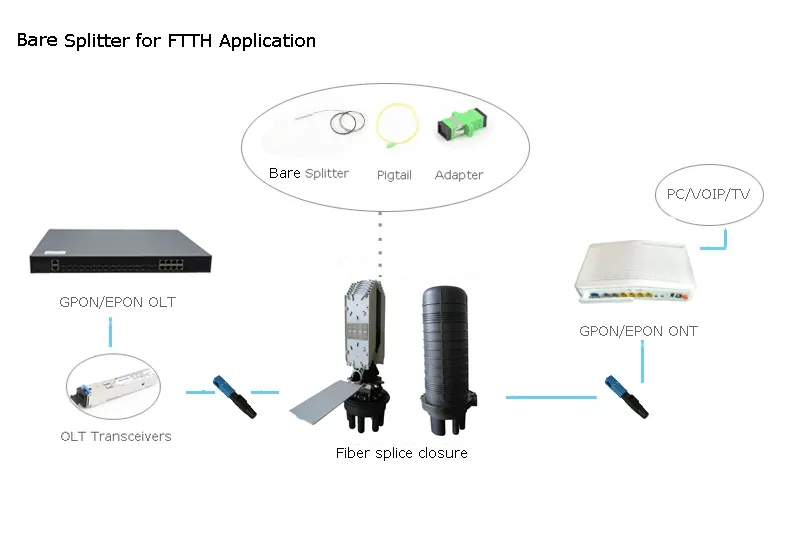

Applications
  1. Optical Signal Distribution
  2. Data Communications
  3. Lan and CATV System
  4. FTTX Deployment
  5. FTTH Network
  6. Passive Optical Networks (PON)
  7. Measuring System and Laser System
  8. DWDM and CWDM Systems
