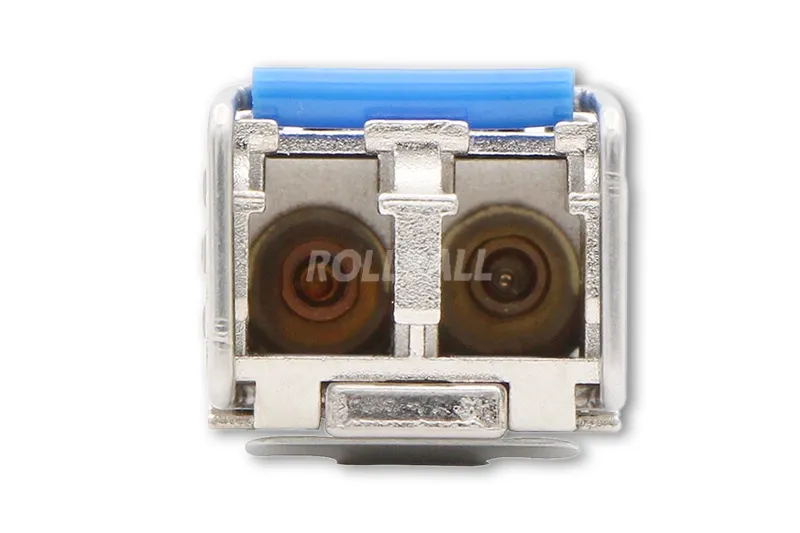

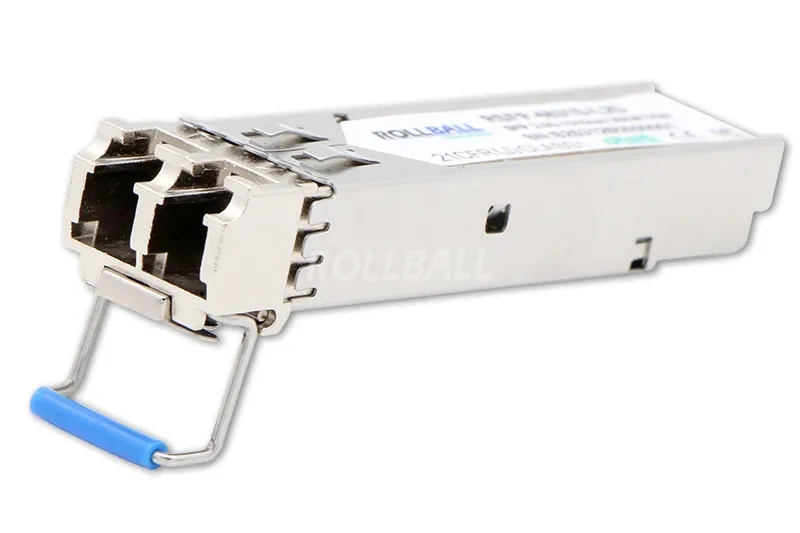

2G SFP 1310nm 20km DOM LC SMF Module 2.5Gbs Transceiver

SFP-2.125G/2.5G-1310nm-20KM
Price:
    Please select the information you wantX
  • Model:
    Commercial grade: 0 to 70 degree
    Industry grade: -40 to +85 degree
  • Compatible:
    Generic
    Customized
    CISCO
    Arista
    Brocade
    Dell
    Extreme
    H3C
    Huawei
    Juniper
    HP
Quantity:
-
+
(1100 Available )
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews



Rollball 2.5Gb/s SFP 1310nm 20km DOM Module





Item Specifications

Part Number

SFP-2.5G-1310

Brand Name Rollball
Form type SFP Max Data Rate 2.5Gb/s
Max Cable Distance:

20km

Wavelength   1310nm
Cable Type  SMF Fiber connector LC Duplex
Optical Components  DFB 1310nm Operate Temperature  0 to 70°C (32 to 158°F)
TX Power -5~0dBm Receiver Sensitivity <-18dBm
Certificates CE, ROHS,FCC, SGS DOM Support Yes



 Applications

 Ø SDH STM-16 and SONET OC-48 system

 Ø 2X Fiber Channel

 Ø Switch to Switch interface

Ø Switched backplane applications

 Ø Router/Server interface

 Ø Other optical transmission systems



Description

Ø The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.5Gbps and 20km transmission distance with SMF.

Ø The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Ø The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Rollball's 1000Base SFP Optical Transceiver Modules

Product List
SFP (155M/622M/1.25G/2.125G/2.5G/4.25G) without DDMI
RSFP-0385M-02 155M 850 MM 2KM SFP 0~70 850nm VCSEL
RSFP-0331M-02 155M 1310 MM 2KM SFP 0~70 FP(LED)+PIN
RSFP-0331S-L2 155M 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-0331S-L4 155M 1310 SM 40KM SFP 0~70 FP+PIN
RSFP-0355S-L8 155M 1550 SM 80KM SFP 0-70 DFB+PIN
RSFP-1231S-L2 622M 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-1231S-L4 622M 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-1255S-L6 622M 1550 SM 60KM SFP 0~70 DFB+PIN
RSFP-1255S-L8 622M 1550 SM 80KM SFP 0~70 DFB+PIN
RSFP-2485M-S5 1.25G 850 MM 550M SFP 0~70 VSCEL+PIN
RSFP-2431S-L2 1.25G 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-2431S-L4 1.25G 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-2455S-L6 1.25G 1550 SM 60KM SFP 0~70 DFB+PIN
RSFP-2455S-L8 1.25G 1550 SM 80KM SFP 0~70 DFB+PIN
RSFP-2455S-12 1.25G 1550 SM 120KM SFP 0~70 DFB+APD
RSFP-4885M-S3 2.125G/2.5G 850 MM 300M SFP 0~70 VSCEL+PIN
RSFP-4831S-02 2.125G/2.5G 1310 SM 2KM SFP 0~70 FP+PIN
RSFP-4831S-L2 2.125G/2.5G 1310 SM 20KM SFP 0~70 DFB+PIN
RSFP-4855S-L6 2.125G/2.5G 1550 SM 60KM SFP 0~70 DFB+APD
RSFP-4855S-L8 2.125G/2.5G 1550 SM 80KM SFP 0~70 DFB+APD
SFP (155M/1.25G/2.125G/2.5G/4.25G) with DDMI
RSFP-0385M-02D 155M 850 MM 2KM SFP 0~70 850nm VCSEL
RSFP-0331M-02D 155M 1310 MM 2KM SFP 0~70 FP(LED)+PIN
RSFP-0331S-L1D 155M 1310 SM 10KM SFP 0~70 FP+PIN
RSFP-0331S-L4D 155M 1310 SM 40KM SFP 0~70 FP+PIN
RSFP-0355S-L8D 155M 1550 SM 80KM SFP 0-70 DFB+PIN
RSFP-1231S-L2D 622M 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-1231S-L4D 622M 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-2485M-S5D 1.25G 850 MM 550M SFP 0~70 VSCEL+PIN
RSFP-2431S-L2D 1.25G 1310 SM 20KM SFP 0~70 FP+PIN
RSFP-2431S-L4D 1.25G 1310 SM 40KM SFP 0~70 DFB+PIN
RSFP-2455S-L6D 1.25G 1550 SM 60KM SFP 0~70 DFB+PIN
RSFP-2455S-L8D 1.25G 1550 SM 80KM SFP 0~70 DFB+PIN
RSFP-2455S-12D 1.25G 1550 SM 120KM SFP 0~70 DFB+APD
RSFP-4885M-S3D 2.125G/2.5G 850 MM 300M SFP 0~70 VSCEL+PIN
RSFP-4831S-02D 2.125G/2.5G 1310 SM 2KM SFP 0~70 FP+PIN
RSFP-4831S-L2D 2.125G/2.5G 1310 SM 20KM SFP 0~70 DFB+PIN
RSFP-4831S-L4D 2.125G/2.5G 1310 SM 40KM SFP 0~70 DFB+APD
RSFP-4855S-L6D 2.125G/2.5G 1550 SM 60KM SFP 0~70 DFB+APD
RSFP-4855S-L8D 2.125G/2.5G 1550 SM 80KM SFP 0~70 DFB+APD
RSFP-4855-12D 2.125G/2.5G 1550 SM 120KM SFP 0~70 DFB+APD
RSFP-4G85M-S5D 4.25G 850 MM 500M SFP 0~70 VSCEL+PIN
RSFP-4G31S-L1D 4.25G 1310 SM 10km SFP 0~70 DFB+PIN
RSFP-4G31S-L3D 4.25G 1310 SM 30km SFP -20~85 DFB+PIN
RSFP-4G31S-02D 4.25G 1310 SM 2KM SFP -20~85 FP+PIN
