2x64 Rack Mounted PLC Splitter, 1U Rack mount PLC Fiber Splitter, SC/APC

PLC-1U-264-SCA
Low Insertion loss and Low PDL, widely used in FTTX Network, PON/WDM network, compliant with Telecordia GR-1221 and GR-1209.
Price:
$132.00
    Please select the information you wantX
  • Connector Type:
    SC-APC
    SC-UPC
    LC-APC
    LC-UPC
Quantity:
-
+
(399996 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews


Rollball 2x64 PLC Fiber Splitter, 1U Rack mount, SC/APC




Description


•  Planar lightwave circuit (plc) splitter  is a type of optical power management device that is fabricated using silica optical waveguide technology.
•  It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
•  Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORErequirements.


Features

•  Item type: 2*64, 1U Rack Mount PLC splitter
•  Connector type: SC/UPC, SC/APC, LC/UPC, LC/APC optinal
•  Good channel-to-channel Uniformity
•  High Polarization Extinction Ratio
•  Low Input Polarization Sensitivity, Insertion loss≤13.9dB, PDL≤0.3dB
•  Compact design, Custom and Rugged Packaging Available
•  Operating temperature : – 40 to 85°C
•  Operating bandwidth: 1260- 1650nm
•  Telcorida GR-1209/ 1221 Qualified
•  Compliance with Telcordia GR-1209-CORE andTelcordia GR-1221-CORE
•  Compliace with RoHS

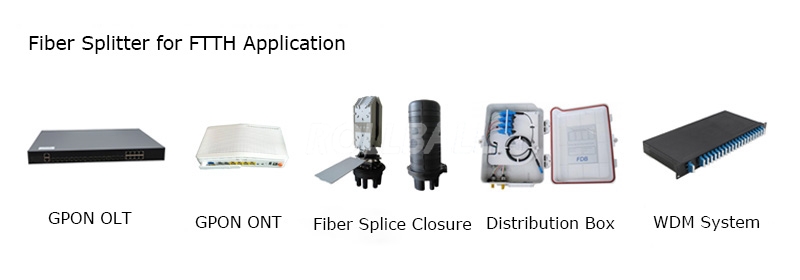

Application

•  Optical Signal Distribution
•  Data Communications
•  LAN and CATV System
•  FTTX Deployment
•  FTTH Network
•  Passive Optical Networks (PON)
•  Outside Plant Equipments
•  DWDM and CWDM systems


​​​​
