100BASE-BX BiDi SFP 1310nm-TX/1490nm-RX 20km DOM SC SMF Module Transceiver

RBSFP-0334S-L2D
Price:
    Please select the information you wantX
  • Model:
    Commercial grade: 0 to 70 degree
    Industry grade: -40 to +85 degree
  • Compatible:
    Generic
    Customized
    CISCO
    Arista
    Brocade
    HP
    Dell
    Extreme
    H3C
    Huawei
    Juniper
Quantity:
-
+
(1320 Available )
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Size Chart
  • Measurement
  • Color Chart
  • Reviews

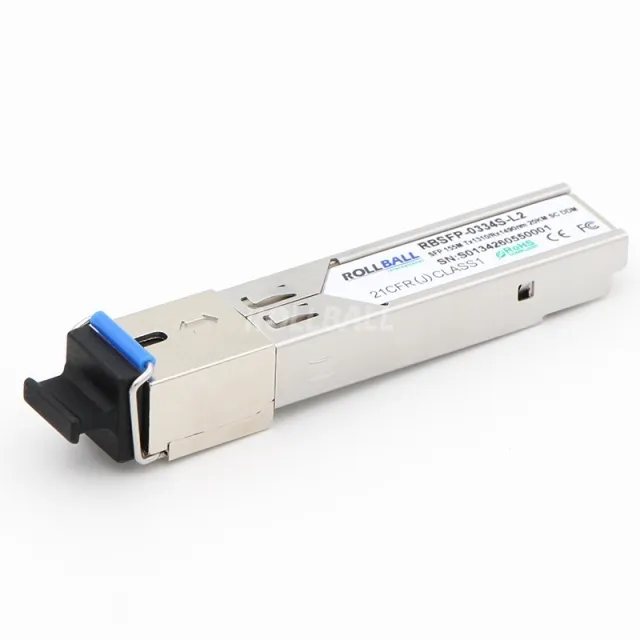

Rollball 155Mb/s BIDI SFP 1310nm-TX/1490nm-RX 20km SC Duplex DOM Module





Item Specifications



Part Number SFP-155M-BX-20 Brand Name Rollball
Form type SFP  Max Data Rate 155Mb/s
Max Cable Distance: 20KM Wavelength  1310nm-TX/1490nm-RX
Cable Type SMF Fiber connector SC Simplex
Optical Components FP BIDI Operate Temperature 0 to 70°C (32 to 158°F)
TX Power -14~-7dBm Receiver Sensitivity <-30dBm
Certificates CE, ROHS,FCC,SGS DOM Support Yes



Applications:

Ø SDH STM-1, S-1.1,L-1.1, L-1.2

Ø SONET OC-3 IR1,LR1,LR2

Ø Other optical links



Product Description

Ø The SFP BIDI transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 20km transmission distance with SMF.

Ø The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

Ø The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
