WS-C3650-48PS-S Catalyst 3650 Switch

Cisco Catalyst 3650 48 10/100/1000 Ethernet PoE ports - 4 x 1G Uplinks - Layer 3 switching - IP Base IOS - Managed
Item Code: WS-C3650-48PS-S
Market Price:
USD $9,400.00
Price:
Save $6,572.00(69% Off)
PDF Format
SKU:
WS-C3650-48PS-S
    Please select the information you wantX
  • Condition:
    Condition: Brand New Sealed
  • Shopping Time:
    Buy Now Shipping Tomorrow!
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units 18 in Stock
  • Description
Cisco Catalyst 3650 48 10/100/1000 Ethernet PoE ports - 4 x 1G Uplinks - Layer 3 switching - IP Base IOS - Managed


Overview (WS-C3650-48PS-S)

Cisco Catalyst WS-C3650-48PS-S is the next generation enterprise-level standalone with stackable option switch with IP Base image. It offers 48 Gigabit Ethernet POE+ ports with 4 fixed 1G SFP uplink ports and provides fully convergence between wired and wireless capacity on a single platform.

Product Details

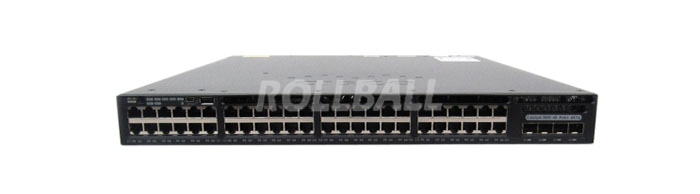

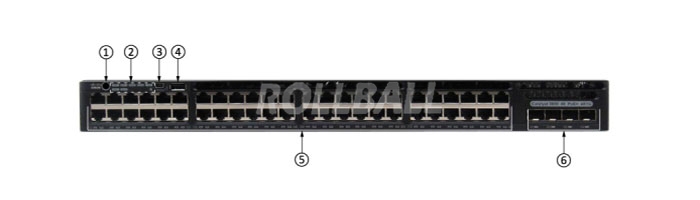

Figure 1  Front panel of WS-C3650-48PS-S





Mode button
Status LEDs
USB mini-Type B (console) port
USB Type A storage port
48 x 10/100/1000 Ports
Uplink ports

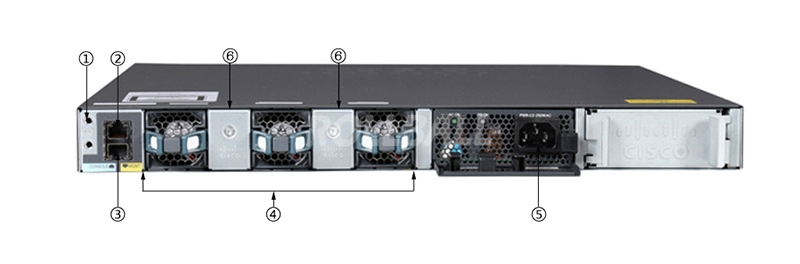

Figure 2  Back panel of WS-C3650-48PS-S.

Ground connector
CONSOLE (RJ-45 console port)
MGMT (RJ-45 10/100/1000 management port)
Fan module
Power supply modules
Stacking modules

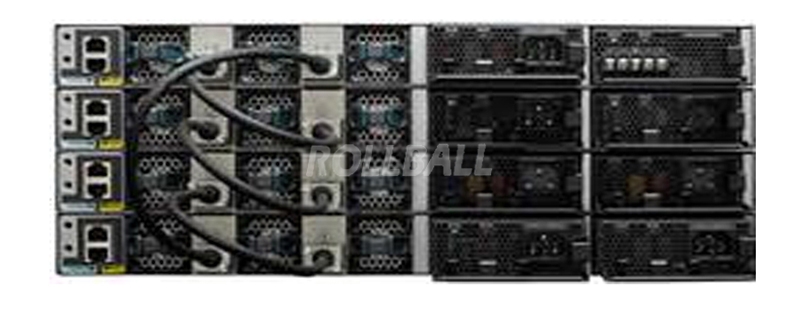

Figure 4  StackWise-160 Kit.

The Cisco Catalyst 3650 supports an optional stacking module that is based on the Cisco StackWise-160 technology which allows stacking up to 9 switches.








WS-C3650-48PS-S Catalyst 3650 Switch
Cisco Catalyst 3650 48 10/100/1000 Ethernet PoE ports - 4 x 1G Uplinks - Layer 3 switching - IP Base IOS - Managed



Specification (WS-C3650-48PS-S)


Product model WS-C3650-48PS-S Ports 48 x 10/100/1000 (POE+)  + 4 x 1G SFP
Feature Set IP Base Maximum stacking number 9
Switching Capacity 176Gbps Forwarding Bandwidth 77.37Mpps
RAM 4G Flash Memory 2G
Uplink Interfaces 4 x 1G SFP uplinks Stack Bandwidth 160Gbps
Power supply PWR-C2-640WAC
Available PoE Power 390W
Compliant Standards ● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
Technical Support and Services ● Cisco SMARTnet Service
● Cisco Smart Foundation Service
● Cisco SP Base Service
● Cisco Focused Technical Support Services
Working environment  Power supply voltage: AC 100V-240V
 Environmental standard Operating temperature: -5ºC to +40ºC
 Working humidity: 10% -85% (non-condensing)
 Storage temperature: -25ºC to 70ºC
Storage humidity: 10% -85% (non-condensing)



Compare to Similar Items (WS-C3650-48PS-S and WS-C3650-48TS-L)


Models WS-C3650-48PS-S WS-C3650-48TS-L
Feature Set IP Base LAN Base
Uplink Interfaces 4 x 1G SFP uplinks 4 x 1G SFP uplinks
Ports 48 x 10/100/1000 POE+ Ethernet ports 48 x 10/100/1000 Ethernet ports
Available PoE Power 390W Not supported
StackWise-160 Optional Optional
