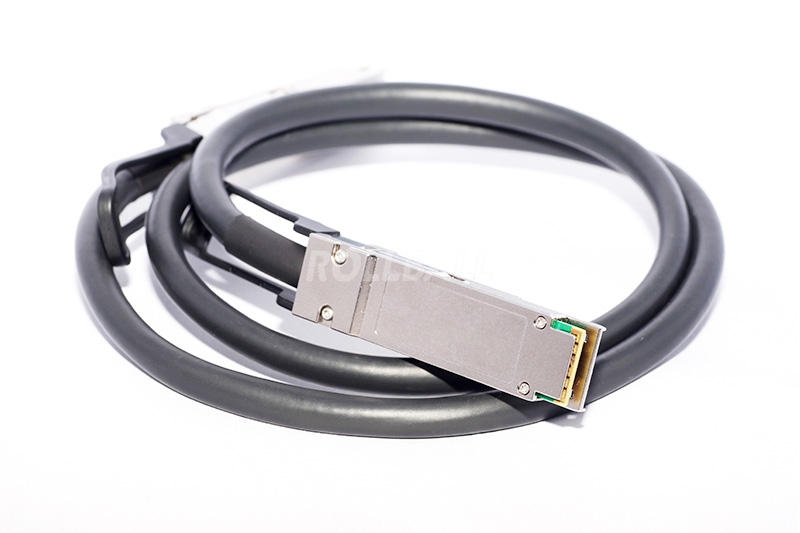

40G QSFP+ to QSFP+ Passive Direct Attach Cables

QSFP+ (Quad Small Form-factor Pluggable Plus) Passive Direct Active Copper Cable Assemblies are suitable for very short distances and offer a highly costeffective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. QSFP+ cables are used for 40 GbE and Infniband standards, to maximize performance.

The QSFP+ passive cable assemblies are high performance,cost effective I/O solutions for 40G LAN, HPC and SAN applications. The QSFP+ passive copper cables are compliant with SFF-8436, QSFP+ MSA and IEEE P802.3ba 40GBASE-CR4. It is offer a low power consumption,short reach intercon- nect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.



Compliant
QSFP+ MSA
SFF-8436
QDR infiniband
10GE/40GE
RoHS Compliant


Applications
40Gigabit Ethernet ( 40G BASE – CR4)
InfiniBand-SDR, DDR, QDR
Communications: Switches, Routers, and HBA s
Networked storage systems

Computer cluster cross-connect


Part Number Product Description
RB-PC400-01C 4 x 10Gbps QSFP+ Direct Attach Cables, 1m (30AWG),0ºC ~ +70ºC
RB-PC400-03C 4 x 10Gbps QSFP+ Direct Attach Cables, 3m (30AWG),0ºC ~ +70ºC
RB-PC400-05C 4 x 10Gbps QSFP+ Direct Attach Cables, 5m (28AWG),0ºC ~ +70ºC
